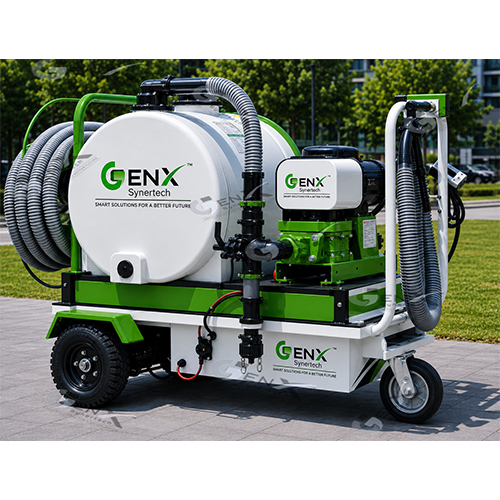

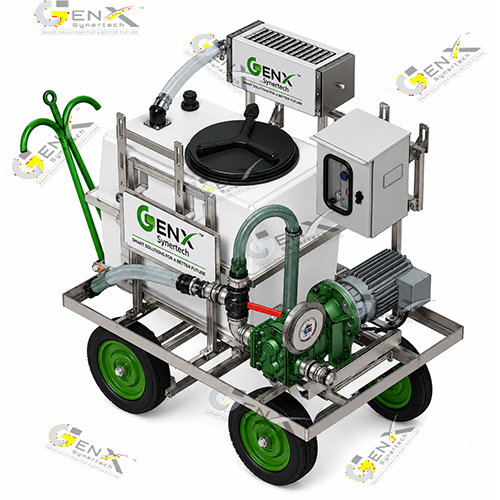

Send Inquiry400 L Trolley-Mounted Sewage Evacuation Machine
400 L Trolley-Mounted Sewage Evacuation Machine Specification
- Humidity %
- Up to 95%
- Product Type
- Trolley-Mounted Sewage Evacuation Machine
- Automation Grade
- Semi-Automatic
- Tank Capacity
- 400 Litres
- Voltage
- 220V AC
- Model No
- 400L-TMSM
- Control Mode
- Manual
- Dimension (L*W*H)
- 1750 x 980 x 1200 mm
- Usage & Applications
- Sewage and sludge evacuation
- Weight
- Approx. 180 kg
- Operating Pressure
- 0.85 bar
- Hose Length
- 5 meters
- Chassis Material
- Mild steel
- Pump Type
- Vacuum pump
- Mobility
- Pneumatic wheels
- Paint Finish
- Anti-corrosive enamel
- Colour
- Blue
- Suction Pipe Diameter
- 50 mm
- No. of Wheels
- 4
- Discharge Valve
- Quick release type
About 400 L Trolley-Mounted Sewage Evacuation Machine
Mobile Sewage Evacuation Machine / Bio Toilet Waste Evacuation System
Product Description
GenX SynerTech manufactures advanced Mobile Sewage Evacuation Machines specially designed for Bio Toilet Tank Cleaning in Indian Railways, Metro Coaches, Portable Toilets, Smart Sanitation Systems & Industrial Waste Handling Applications.
This fully automatic evacuation system is developed for zero-spillage sewage transfer, ensuring safe, hygienic, and operator-friendly waste evacuation without direct contact with bio-toilet waste.
The machine uses a high-performance Positive Displacement Lobe Pump for powerful suction, sludge transfer, inoculum separation, and recirculation. Designed under the Make in India initiative, the system offers efficient solid handling capability, odor control, and advanced filtration technology.
KEY FEATURES
- Fully Automatic Operation
- Zero Spillage Technology
- No Human Contact with Waste
- Advanced Positive Displacement Lobe Pump
- Suitable for Railway Bio Toilet Cleaning
- Heavy-Duty Portable Trolley Mounted Design
- Solid Waste Handling Capacity (Napkins, Sludge etc.)
- Odor Control Exhaust Filtration System
- Stainless Steel / GRP Tank Construction
- High Vacuum & Pressure Performance
- Long Hose Reach for Easy Operation
- Low Maintenance & Heavy-Duty Design
- Manufactured in India (Make in India)
TECHNICAL SPECIFICATIONS
| Specification | Details |
| Product Type | Mobile Sewage Evacuation Machine |
| Operation Type | Fully Automatic |
| Mounting Type | Portable Trolley Mounted |
| Flow Rate | 150 LPM |
| Hose Length | 30 Meter |
| Motor Power | 30 HP |
| Power Source | Electric Motor |
| Voltage | 220-240 V |
| Frequency | 50 Hz |
| Tank Capacity | 4000 L |
| Water Tank Capacity | 2000 L |
| Tank Material | Stainless Steel / GRP |
| Vacuum Pressure | Up to -0.95 Bar |
| Operating Pressure | 250 Bar |
| Pressure Rating | 120 Bar |
| Number of Wheels | 4 Heavy Duty Wheels |
| Automation Grade | Fully Automatic |
| Warranty | 1 Year |
| Availability | In Stock |
APPLICATIONS
- Indian Railway Bio Toilet Cleaning
- Metro Toilet Maintenance
- Portable Toilet Waste Removal
- Smart City Sanitation Projects
- Municipal Sewage Handling
- Industrial Sludge Transfer
- Septic Tank Cleaning
- Bio-Digester Waste Handling
ADVANCED SYSTEM FEATURES
Lobe Pump Technology
The system uses a specially designed Positive Displacement Lobe Pump capable of handling:
- Thick sewage sludge
- Bio waste
- Napkins & semi-solid waste
- High suction applications
Filtration & Inoculum Separation
The machine separates reusable inoculum material and recirculates it back into the bio-toilet tank system.
Odor Control System
Integrated exhaust filtration helps reduce foul odor emission during operation.
Operator Safety
Designed for:
- Zero spillage
- Hygienic operation
- No direct contact with waste
- Safe railway maintenance operation
WHY CHOOSE GENX SYNERTECH?
- Advanced Waste Management Engineering
- Railway & Bio Toilet Solution Expertise
- Heavy-Duty Industrial Quality
- Customized Design Solutions
- Strong After Sales Support
- Made in India Technology
- Smart Sanitation Equipment Manufacturer
INDUSTRIES WE SERVE
- Indian Railways
- Metro Rail Projects
- Smart Cities
- Municipal Corporations
- Portable Toilet Operators
- Industrial Waste Management
- Government Sanitation Projects
SEARCH KEYWORDS FOR TRADE INDIA / INDIA MART
- Mobile Sewage Evacuation Machine
- Bio Toilet Cleaning Machine
- Railway Toilet Cleaning Machine
- Portable Sewage Evacuation System
- Vacuum Sewage Transfer Machine
- Bio Digester Cleaning Equipment
- Positive Displacement Vacuum Pump System
- Trolley Mounted Sewage Machine
- Railway Bio Toilet Evacuation Machine
- Industrial Sludge Transfer Machine
- Fully Automatic Sewage Cleaning Machine
- Smart Sanitation Equipment
- Vacuum Waste Handling System
- GRP Tank Sewage Machine
- Electric Sewage Evacuation Machine
